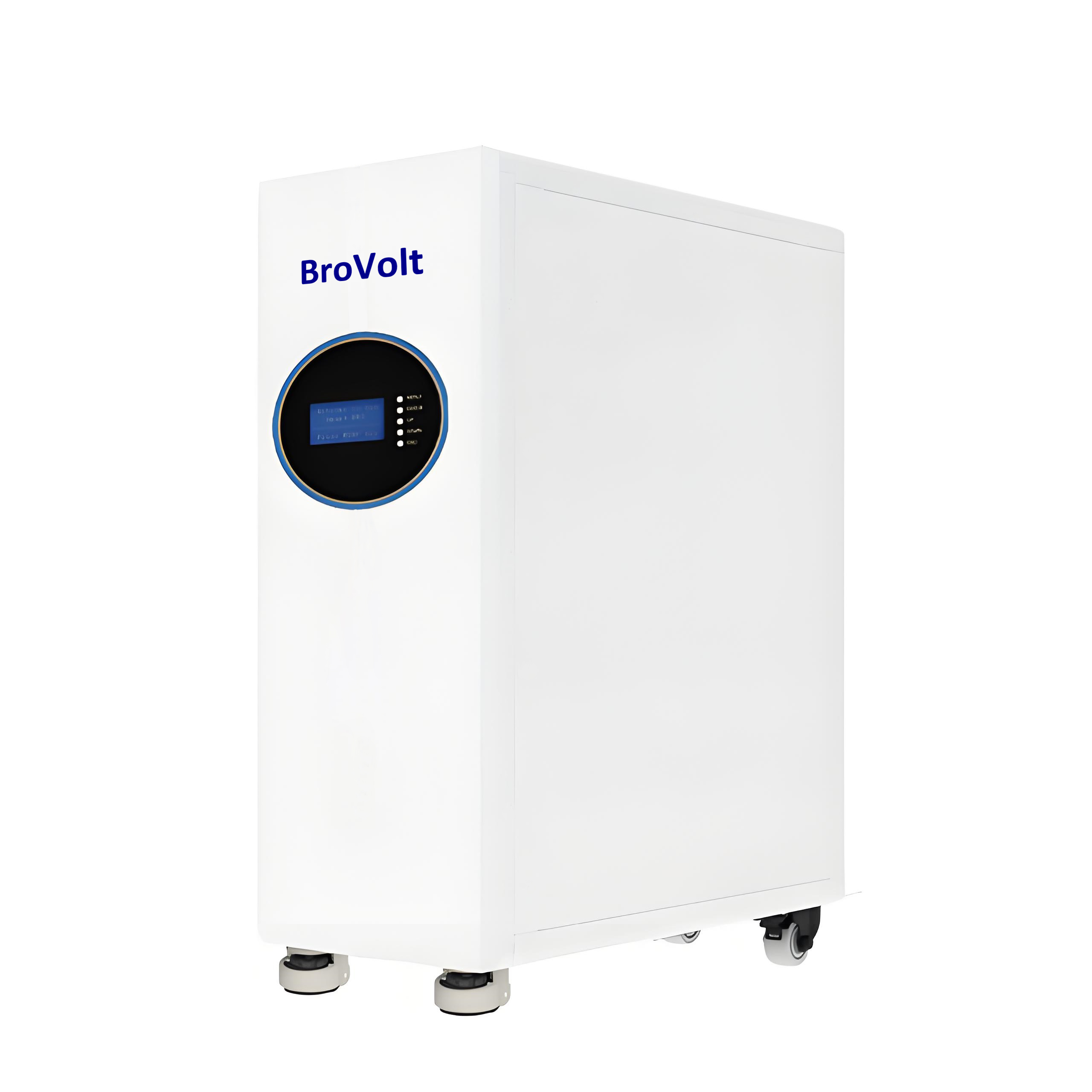

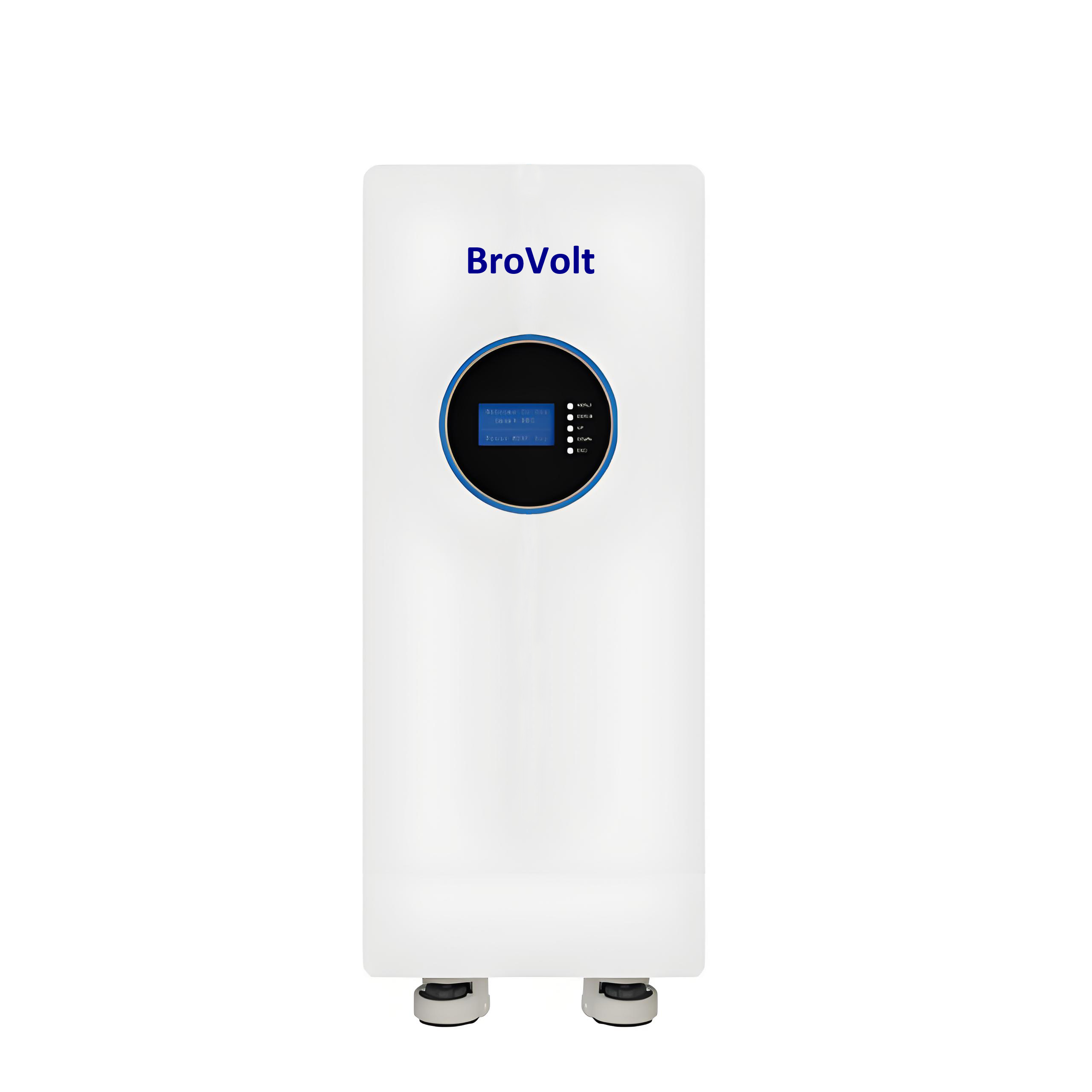

This 48V460Ah is maily using solar power system for family house. Safety : LiFePO4 cells, high safety and long cycle life, ensuring secure performance under diverse conditions. Flexible: Designed for easy mobility, compact and flexible, allowing for seamless installation across different environments. Smart Management: Built-in BMS that provides multi-level protection, including overcharge, over-discharge, and overheating, enhancing system reliability. Parallel Expansion: Supports parallel usage, allowing capacity to scale up to 350 kWh Compatibility: Compatible with most inverters
Item | Specification | Conditions |
---|---|---|
Model | BM48460 | |
Voltage | 51.2V | |
Capacity | 460Ah | 25℃,0.2C |
Max Discharging Current | 200A | Recommended 92A |
Max Charging Current | 200A | Recommended 92 A |
Weight | 194kg | ±0.5kg |
Cycle Life | >6000 times | 0.2C, 80%DOD, 25 ℃ |
Design Life | >10 years | |
Charging Voltage | 58.4V | |
Discharging Voltage | 44.8V | |
Battery Cell | LiFePO4 | |
Storage Temperature | -10℃~55℃ | |
Discharging Temp | -10℃~55℃ | |
Charging Temp | -10℃~55℃ | |
Dimension | 700*380*990mm |
Model | BM48460 |
Nominal Voltage | 51.2V |
Nominal Capacity | 460Ah |
Max Discharging Current | 200A |
Max Charging Current | 200A |
Weight | 194kg |
Cycle Life | >6000 times |
Design Life | >10 years |
Charg Cut-off Voltage | 58.4V |
Discharge Cut-off Voltage | 44.8V |
Battery Cell | LiFePO4 |
Storage Temperature | -10℃~55℃ |
Discharging Temp | -20℃~55℃ |
Charging Temp | -20℃~55℃ |
Dimension | 700*380*990mm |
