48V400Ah Movable Floor-mount Battery
  • 48V400Ah Movable Floor-mount Battery
  • 48V400Ah Movable Floor-mount Battery
  • 48V400Ah Movable Floor-mount Battery
  • 48V400Ah Movable Floor-mount Battery
0 1 2 3

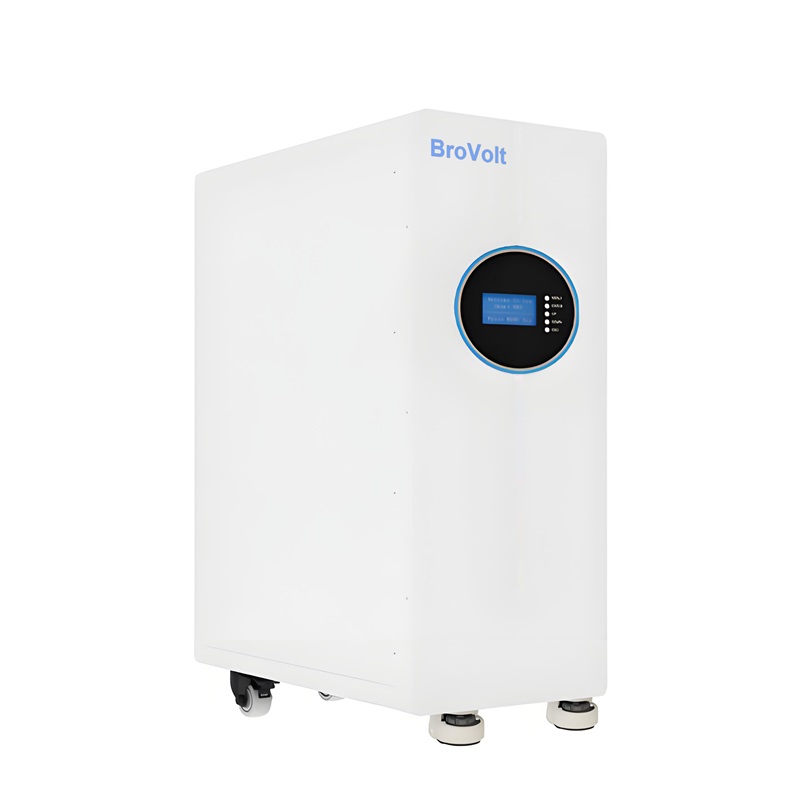

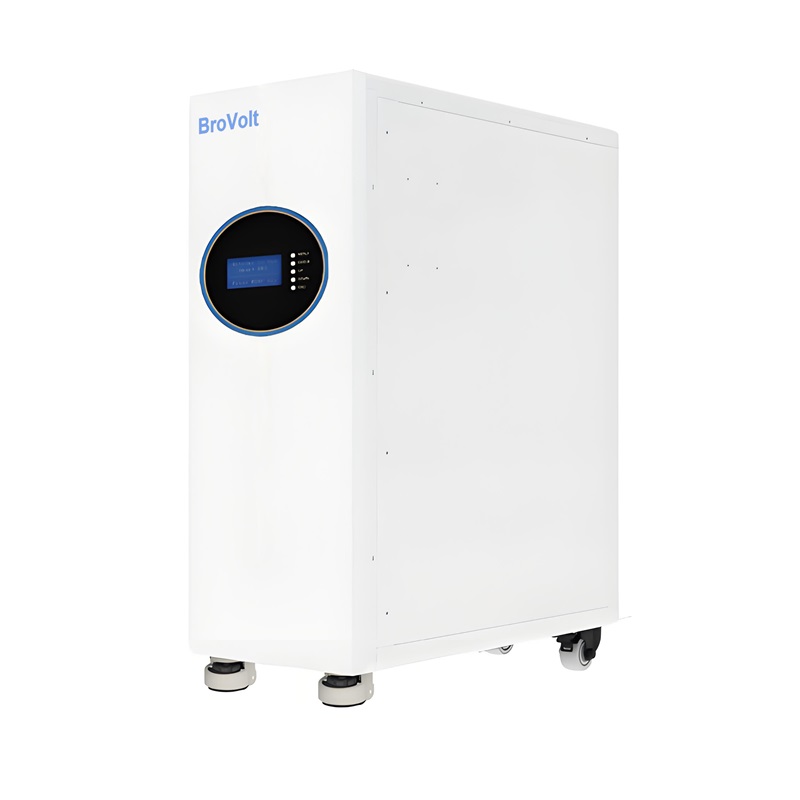

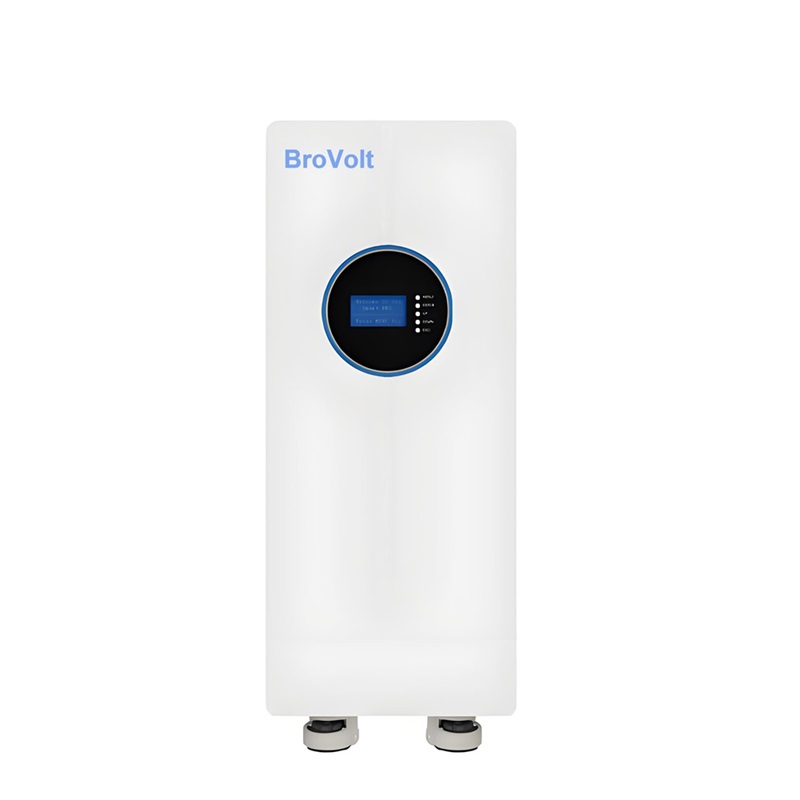

48V400Ah Movable Floor-mount Battery

This 48V400Ah is maily using solar power system for family house. Flexible: Designed for easy mobility, compact, and flexible, allowing for seamless installation across different environments. Smart Management: Built-in BMS that provides multi-level protection, including overcharge, over-discharge, and overheating, enhancing system reliability. Parallel Expansion: Supports parallel usage, allowing capacity to scale up to 307 kWh Compatibility: Compatible with most inverters

  • Parameters
  • ItemSpecification
    Conditions
    ModelBM48400
    Voltage51.2V
    Capacity400Ah25℃,0.2C
    Max Discharging Current200ARecommended 80A
    Max Charging Current200ARecommended 80 A
    Weight168kg±0.5kg
    Cycle Life>6000 times 0.2C, 80%DOD, 25 ℃
    Design Life>10 years
    Charging Voltage58.4V
    Discharging Voltage 44.8V
    Battery CellLiFePO4
    Storage Temperature-10~55
    Discharging Temp -20~55
    Charging Temp-20~55
    Dimension540*260*940mm


    ModelBM48400
    Nominal Voltage51.2V
    Capacity400Ah
    Max Discharging Current200A
    Max Charging Current200A
    Weight168kg
    Cycle Life>6000 times
    Design Life>10 years
    Charge Cut-off Voltage58.4V
    Discharge Cut-off Voltage 44.8V
    Battery CellLiFePO4
    Storage Temp-10℃~55℃
    Discharging Temp -20~55
    Charging Temp-20~55
    Dimension540*260*940mm
