500kW 1.5MWh Battery Energy Storage System 20Ft Comtainerized ESS
  • 500kW 1.5MWh Battery Energy Storage System 20Ft Comtainerized ESS
  • 500kW 1.5MWh Battery Energy Storage System 20Ft Comtainerized ESS
  • 500kW 1.5MWh Battery Energy Storage System 20Ft Comtainerized ESS
0 1 2

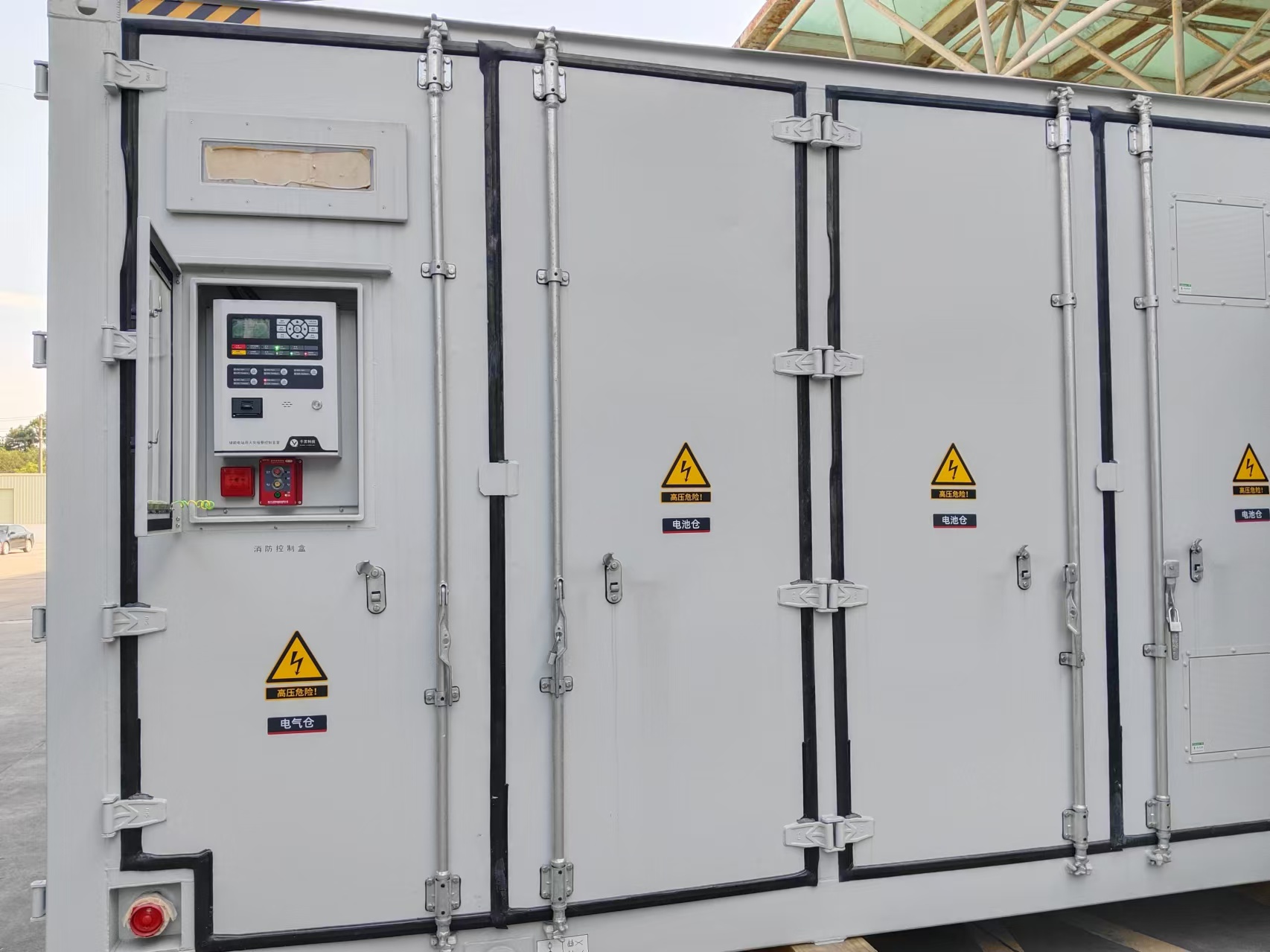

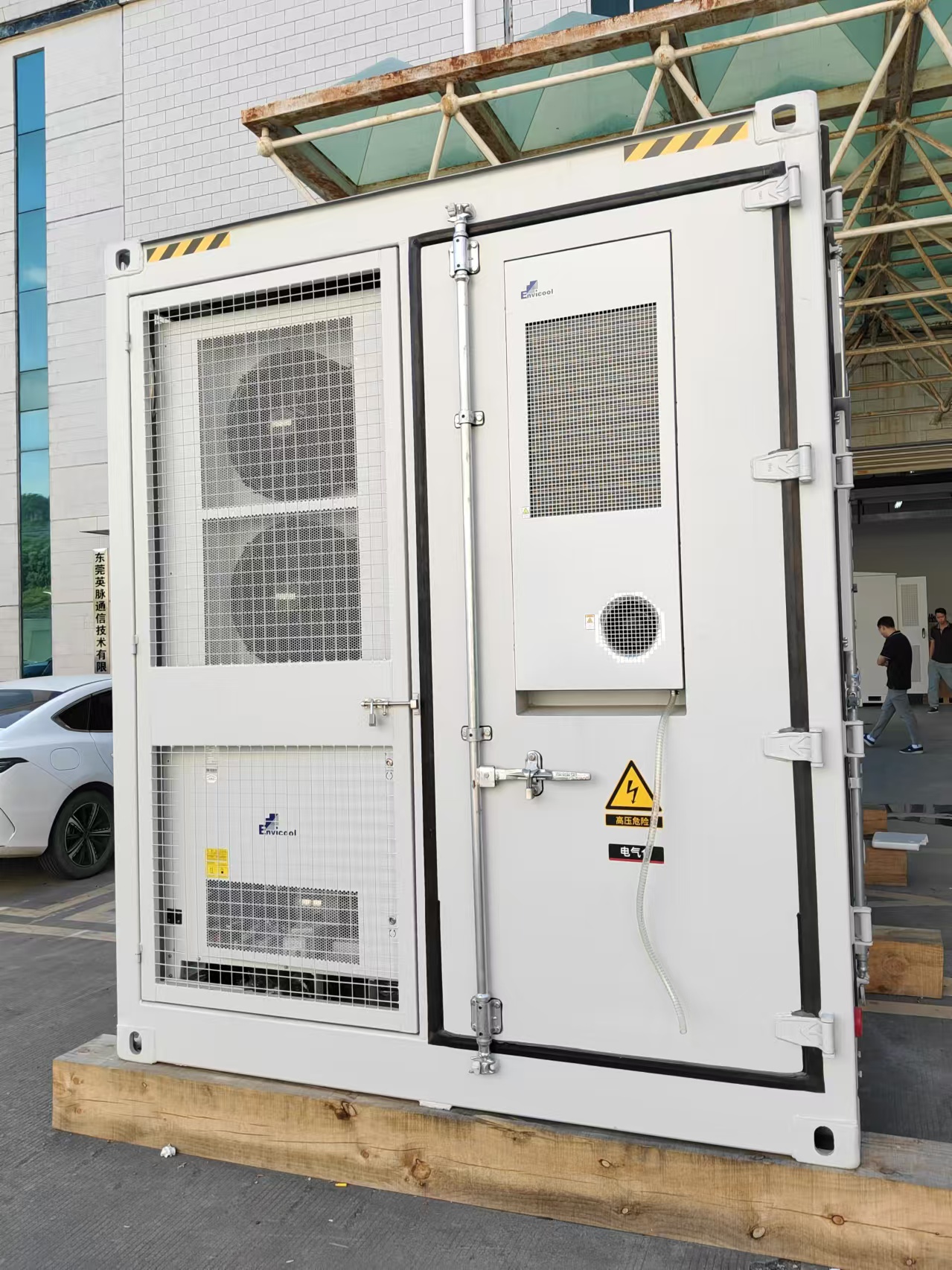

500kW 1.5MWh Battery Energy Storage System 20Ft Comtainerized ESS

20Ft container energy storage system supports peak load shaving, grid frequency modulation, and backup power supply. It can be connected to photovoltaic system, diesel engine, and grid. It can automatically switch between grid and off grid with short switching time.

  • Parameters
  • ModelBC1500
    Battery CellLiFePO4
    Cell Capacity3.2V/280Ah
    Configuration7*1P240S
    Nominal Energy 1.5MWh
    Nominal Voltage768V
    System Volatge Range648-876V
    DOD90%
    Nominal Power500kW
    Nominal Voltage 400VAC
    Frequency50Hz/60Hz
    Cooling MethodForced Air Cooling
    Demension6058*2438*2591mm
    Electrical IsolationTransformer
    Ingress ProtectionIP54
    Anti-corrosion GradeC3 (C4,C5 optional)
    Operating Temp -20℃~50℃(>45℃ derating)
    Storage Temp-30℃~60℃
    Weight25 t
    Relative Humidity0~95%(no condensation)
    Altitude≤3000m(>2000m derating)
    Fire Protection SystemHFC
    Communication ProtocolCAN/Modbus/IEC61850/IEC104
    Communication InterfaceCAN2.0/RJ45/RS485


    ModelBC1500
    Battery CellLiFePO4
    Cell Capacity3.2V/280Ah
    Configuration7*1P240S
    Nominal Energy 1.5MWh
    Nominal Voltage768V
    System Volatge Range648-876V
    DOD90%
    Nominal Power500kW
    Nominal Voltage 400VAC
    Frequency50Hz/60Hz
    Cooling MethodForced Air Cooling
    Demension6058*2438*2591mm
    Electrical IsolationTransformer
    Ingress ProtectionIP54
    Anti-corrosion GradeC3 (C4,C5 optional)
    Operating Temp -20℃~50℃(>45℃ derating)
    Storage Temp-30℃~60℃
    Weight25 t
    Relative Humidity0~95%(no condensation)
    Altitude≤3000m(>2000m derating)
    Fire Protection SystemHFC
    Communication ProtocolCAN/Modbus/IEC61850/IEC104
    Communication InterfaceCAN2.0/RJ45/RS485
